Specification
| Solar Bracket Profile U | |
| Raw Material: | Zinc-AL-Mg Steel Strips |
| Grade: | S350GD+ZM275;S420GD+ZM275;S450GD+ZM275 |
| Wall Thickness: | 1.5/1.8/2.0/2.5/3.0mm |

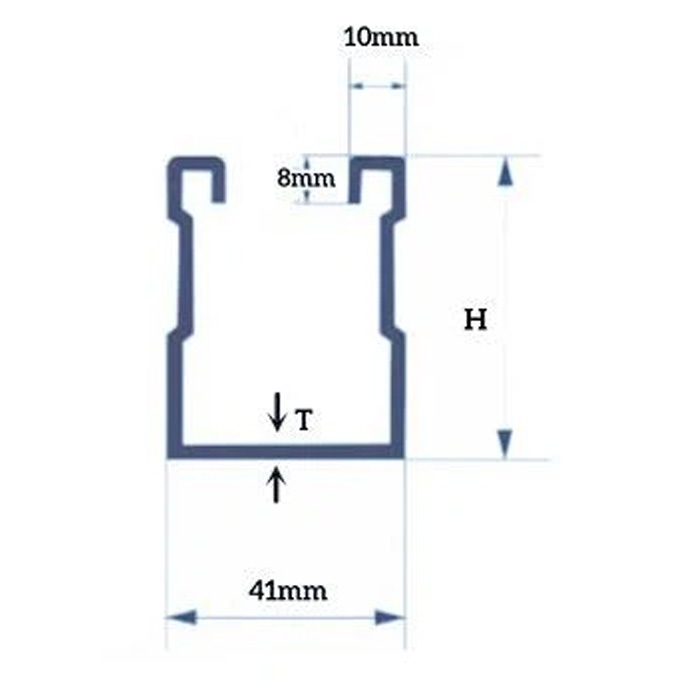

| Size:(mm) | 41×41;41×52;41×62 |
| Length:(mm) | 5800/6000mm or fixed length |
Advantages of Zinc-Al-Mg Solar Mounting Bracketย
1.Enables easy,fast and cost-effective installation.
2. Flexible post spacing withstands different wind&snow loads.
3. High quality material in Zinc Aluminum Magnesium.
4. Highly corrosion resistant surface treatment.
5. Screws and nuts go with every componts needed.
6. Fasteners and rail nut fully configured to save extra parts purchasing.
7. Mechanical calculation and reliability tested to ensure highset product quality.
8. 12-25 years system and structural guarantee.
FAQ
Q1: What is your MOQ?
A: 500kg for general products. More than 5 tons for new products.
Q2: Can you produce Zinc Aluminum Magnesium profiles by drawing?
A: We have professional engineer to design CAD drawing and establish mould according to customers’ requirement.
Q3: What certification do you have? What’s your standard?
A: We have ISO certification. Our standard is DIN, AAMA, AS/NZS, China GB.
Q4: What’s the delivery time for samples and mass production?
A: (1). 2-3 weeks to open the new moulds and make free samples.
(2). 3-4 weeks after receipt of deposit and confirmation of the order.
Q5: What’s the packing way?
A: Commonly we use shrink films or kraft paper, also we can make as per customers’ requirements.
Q6: What’s the payment terms?
A: Usually by T/T, 30% deposit and the balance paid before shipment, L/C is also acceptable.
