Products Descriptions

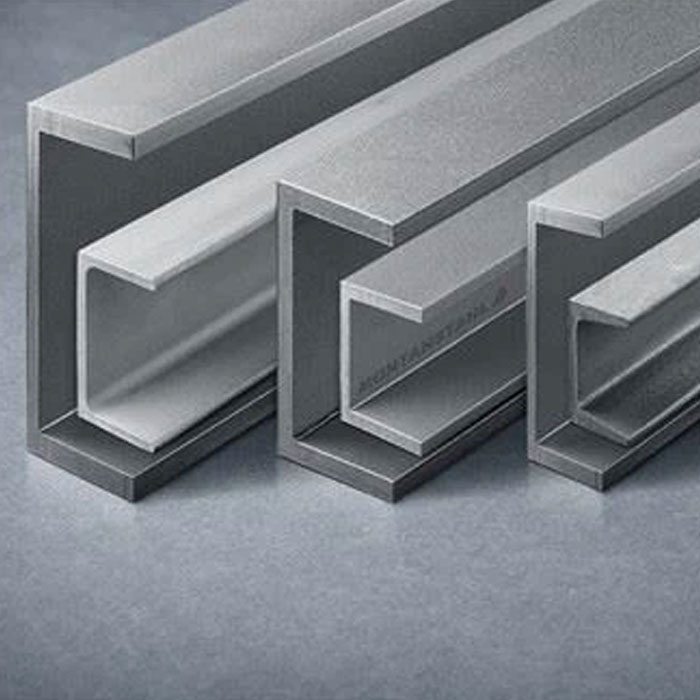

โย Product name:ย STEEL CHANNEL
โย Standards: AISI, ASTM, BS, DIN, GB, JIS
โย Place of origin: Tianjin, China (Mainland)
โย Brand name: Runfei
โย Payment terms: L/C, T/T (30% deposit)
โย Certifications: ISO 9001, SGS, RoHS Directive-compliant
โย Packing details: Standard seaworthy packing, horizontal type and vertical type are all available
Our Advantages
โย We can provide factory price with trading company services
โย We control production quality very strictly to keep none compensation
โย We guarantee 24 hours response and 48 hours solution providing service
โย We accept small order quantity before formal cooperation
โย We offer good quality with reasonable price, faster delivery with better payment terms
โย We have professional teams and the factory
โย It’s very important for a company to be honest in the process of trading and so do we
C12x20.7 Steel Channel ย C Channel Sizes
| Produce Name | C12x20.7 Steel Channel ย C Channel Sizes |
| Standard | JIS, ASTM, GB, DIN, EN, AISI |
| Grade | 301,302,303,304,304L,305,309S,310S,316,316L,317,317L,321,347 631… |
| Length | 1m~6m |
| Diameter | 75x30x6mmย many other size can be done |
| Application | Foodstuff, gas, metallurgy, biology, electron, chemical, petroleum, boilers, nuclear, energy, construction field, ships building industry, war and electricity industry, boiler heat exchange, machine and hardware fields and medical equipment, fertilizer, etc. |
| Package | Export standard package, bundled or be required. The inner size of container is below: 20ft GP: 5.9m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM |
| Payment Terms | T/T |
| 60 main carrier | U Channel | 50ร12 | 1.0mm | 3000mm |
| U Channel | 50ร15 | 1.0mm | 3000mm | |
| U Channel | 50ร15 | 1.2mm | 3000mm | |
| 60 main carrier | U Channel | 60ร27 | 1.0mm | 3000mm |
| U Channel | 60ร27 | 1.2mm | 3000mm | |
| C Channel | 50ร19 | 0.4mm | 600/1200mm | |
| Cross Carrier | C Channel | 50ร19 | 0.5mm | 600/1200mm |
| C Channel | 50ร19 | 0.45mm | 600/1200mm | |
| C Channel | 60ร27 | 0.6mm | 600mm | |
| C Channel | 60ร27 | 0.5mm | 600mm | |
| 38 main carrier | U channel | 38ร12 | 1.0mm | 3000mm |
| Wall angle | 50wall angle | 20ร20ร30 | 0.45mm | 3000mm |
| 50Main Carrier | U Channel | QU50ร45 | 0.6mm | 3000mm |
| C Channel | QC50ร40 | 0.6mm | 3000mm | |
| 75Main Carrier | U Channel | QU75ร40 | 0.5mm | 3000mm |
| U Channel | QU75ร45 | 0.6mm | 3000mm |
| Channel Steel | |||||
| Size(mm) | Theoretical
weight(kg/m)
|
Size(mm)
|
Theoretical
weight(kg/m)
|
||
| 5 | 50*37*4.5 | 5.438 | 22B | 220*79*9 | 28.453 |
| 6.3 | 63*40*4.8 | 6.634 | 25A | 250*78*7 | 27.41 |
| 6.5 | 65*40*4.8 | 6.709 | 25B | 250*80*9 | 31.335 |
| 8 | 80*43*5 | 8.045 | 25C | 250*82*11 | 35.26 |
| 10 | 100*48*5.3 | 10.007 | 28A | 280*82*7.5 | 31.427 |
| 12 | 120*53*5.5 | 12.059 | 28B | 280*84*9.5 | 35.823 |
| 12.6 | 126*53*5.5 | 12.318 | 28C | 280*86*11.5 | 40.219 |
| 14A | 140*58*6 | 14.535 | 30A | 300*85*7.5 | 34.463 |
| 14B | 140*60*8 | 16.733 | 30B | 300*87*9.5 | 39.173 |
| 16A | 160*63*6.5 | 17.24 | 30C | 300*89*11.5 | 43.883 |
| 16B | 160*65*8.5 | 19.752 | 36A | 360*96*9 | 47.814 |
| 18A | 180*68*7 | 20.174 | 36B | 360*98*11 | 53.466 |
| 18B | 180*70*9 | 23 | 36C | 360*100*13 | 59.118 |
| 20A | 200*73*7 | 22.64 | 40A | 400*100*10.5 | 58.928 |
| 20B | 200*75*9 | 25.777 | 40B | 400*102*12.5 | 65.204 |
| 22A | 220*77*7 | 24.999 | 40C | 400*104*14.5 | 71.488 |
