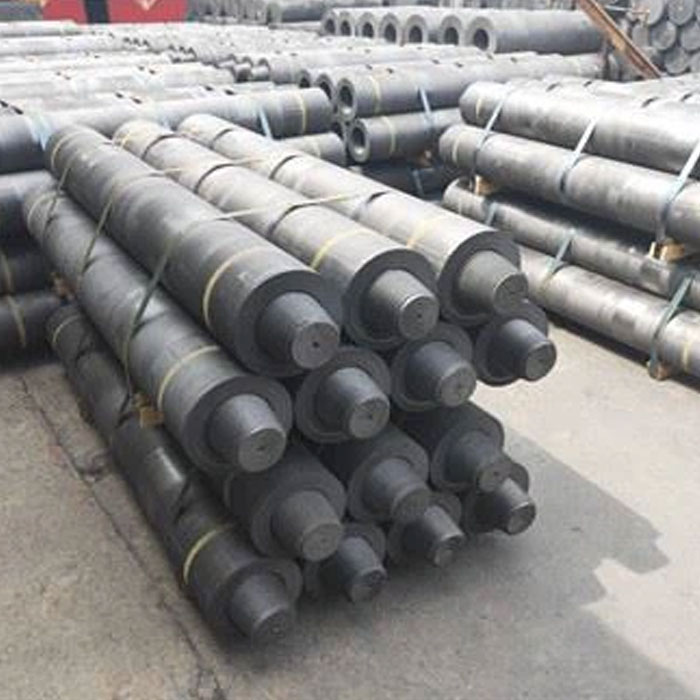

Our company adhering to theย graphite electrodeย production experience for many years, with its excellent quality and perfect after-sales service, won the praise of customers at home and abroad. Graphite electrode can be used for ore heat furnace, resistance furnace, used for smelting of ferroalloys. Graphite electrode produced by our company is widely used in steel smelting.
Graphite electrodesย are mainly made of petroleum coke and needle coke as raw materials, coal tar pitch as a binder, and are made by calcination, batching, kneading, compaction, roasting, graphitization, and machining. It releases electric energy in the form of electric arc in an electric arc furnace. Conductor for heating and melting the charge.
Type
โย Regular power
โย High power
โย Ultra high power
โย High density
Physical and chemical indices of graphite electrode and nipple
| Specific
Resistance (uฮฉ.m) |
Young’s
Modulus (Gpa) |
Flexural
Strength (Mpa) |
ย ย ย ย Buld
Density (g/cmยณ) |
Ash
Content (%) |
Coefficient
of thermal expansion (100-600โ) |
|||||||
| Inspecion
standard |
YB/T 120 | GB3074.2 | GB3074.1 | ย ย YB/T119 | Gb129 | GB3074.4 | ||||||
| Specification | ย ย ย ย ย ย ย ย ย ย max | ย ย ย ย ย ย ย ย ย ย min | ย ย ย ย ย ย ย ย ย ย max | |||||||||
| Electrode | Nipple | Electrode | Nipple | Electrode | Nipple | Electrode | Nipple | Electrode | Nipple | |||
| Regular power | 200-300 | 7.5-8.0 | 6.0-6.5 | 9.3 | 13 | 10 | 14 | 1.55-1.6 | 1.65-1.7 | 0.3 | 2.8 | 2.7 |
| 350-500 | 7.5-8.5 | 6.0-7.0 | 9.3 | 13 | 9 | 14 | 1.55-1.6 | 1.65-1.7 | 2.8 | 2.8 | ||
| 550-650 | 8.0-9.5 | 6.5-7.0 | 9.3 | 13 | 9 | 14 | 1.55-1.6 | 1.65-1.7 | 2.8 | 2.8 | ||
| 700-800 | 9.5-11.0 | 6.5-7.5 | 9.3 | 13 | 8 | 14 | 1.55-1.6 | 1.65-1.7 | 2.8 | 2.8 | ||
| High
power |
200-300 | 5.2-6.5 | 4.8-5.2 | 11 | 14 | 11 | 16 | 1.64-1.7 | 1.73-1.79 | 0.3 | 2.4 | 2.2 |
| 350-500 | 5.2-6.5 | 4.8-5.2 | 11 | 14 | 11 | 16 | 1.64-1.7 | 1.73-1.79 | 2.4 | 2.2 | ||
| 550-650 | 5.5-6.8 | 5.0-5.5 | 11 | 14 | 10.5 | 16 | 1.64-1.7 | 1.73-1.79 | 2.4 | 2.2 | ||
| 700-800 | 5.5-6.8 | 5.0-5.5 | 11 | 14 | 10.5 | 16 | 1.64-1.7 | 1.73-1.79 | 2.4 | 2.2 | ||
| Ultra high power | 200-300 | 4.8-5.5 | 3.6-4.5 | 13 | 17 | 11 | 18 | 1.67-1.72 | 1.75-1.82 | 0.25 | 1.5 | 1.4 |
| 350-500 | 4.8-5.5 | 3.6-4.5 | 13 | 17 | 11 | 18 | 1.67-1.72 | 1.75-1.82 | 1.5 | 1.4 | ||
| 500-600 | 5.0-5.6 | 3.6-4.5 | 13 | 17 | 11 | 18 | 1.67-1.72 | 1.75-1.82 | 1.5 | 1.4 | ||
| High
Density |
200-300 | 6.5-7.5 | 5.2-6.0 | 10 | 14 | 10.5 | 15 | 1.6-1.64 | 1.7-1.73 | 0.3 | 2.6 | 2.4 |
| 350-500 | 6.5-7.5 | 5.2-6.0 | 10 | 14 | 10.5 | 15 | 1.6-1.64 | 1.7-1.73 | 2.6 | 2.5 | ||
| 550-650 | 6.8-8.0 | 5.5-6.5 | 10 | 14 | 10.5 | 15 | 1.6-1.64 | 1.7-1.73 | 2.6 | 2.5 | ||
| 700-800 | 6.8-9.5 | 5.5-6.5 | 10 | 14 | 10.5 | 15 | 1.6-1.64 | 1.7-1.73 | 2.6 | 2.5 | ||
Advantage
โย High EDM removal rate and low graphite loss
โย Graphite electrodes are easier to process, and the processing speed is significantly faster than copper electrodes
Application
โย Used in electric arc steel making furnace
โย Used in ore heating electric furnace
โย Used for resistance furnace
โย Used to prepare special-shaped graphite products
Our advantages
โย We can provide factory price with trading company services
โย We control production quality very strictly to keep none compensation
โย We guarantee 24 hours response and 48 hours solution providing service
โย We accept small order quantity before formal cooperation
โย We offer good quality with reasonable price, faster delivery with better payment terms
โย We have professional teams and the factory
โย It’s very important for a company to be honest in the process of trading and so do we
Our history
Established in 1998, Runfei Steel Group has developed into a large-scaled enterprise, located in the city of Tianjin, which is the economic center and major port in north China. With convenient transportation advantage of Tianjin, intellectual marketing network, powerful system of storage, processing and distribution, and good reputation, Runfei has successfully set up between miles and clients.
FAQ
Q1. What kind of terms of payment?
A:T/T, L/C are available.
Q2. What grads of the product can you offer?
A:These products can be customized according to your requirement.
Q3. Is free sample available?
A:Yes, free sample is available
