What is 150G Prepainted Galvalume Steel Coil and Why is it a Top Choice for Modern Construction?

Introduction

In modern architecture and manufacturing industry, people have been looking for materials that can achieve the best balance of durability, cost-effectiveness and aesthetic appeal. A leading solution to meet these stringent standards is the 150G precoated galvalume coil. But what exactly is this material and what are its special properties that make it so effective? This article provides a detailed exploration of prepainted galvalume, explaining its composition, key benefits, technical specifications, and its diverse range of applications, helping you make an informed material selection.

What is Prepainted Galvalume Steel? A Definition

In order to understand the precoated galvalume, we must first decompose its components parts. Its core is the matrix of galvalume. Galvalume is a carbon steel sheet coated with a unique alloy composed of approximately 55% aluminum, 43.4% zinc, and 1.6% silicon by weight. This special combination was initiated by BIEC International. Synergistic effect is produced: the aluminum provides excellent corrosion resistance by forming a protective barrier, while the zinc provides sacrificial protection to any cutting edges.

The “prepainted” refers to the subsequent coating process. After the galvalume substrate is produced, it goes through a precise continuous coil coating production line. Here, it is cleaned, treated with a chemical conversion coating to enhance the adhesion of paint, and then accurately coated with various types of paint (such as polyester PE, silicified polyester SMP or polyvinylidene fluoride PVDF) on both sides before curing. The “150 g” means the coating weight of the bottom galvalume layer, which is 150g/m2 (g/my), which is a powerful standard for harsh environment.

Table 1: General guide to galvalume coating weights and typical use cases. (Source: Based on the industrial standards of ASTM A792/A792M).

The unique advantages of 150G precoated galvalume steel

The obvious advantages of 150G prepainted galvalume stems from its comprehensive advantages of layered structure.

1. Excellent corrosion Resistance: The basic 150G galvalume substrate provides an anti-rust mechanism, which is much better than the standard galvanized steel. Research shows that in many environments, the life of aluminum-zinc coating is four times longer than that of traditional zinc coating. (Source: International Zinc Association, “Zinc Protects Steel – Galvalume”) This makes it an ideal choice for roofing and cladding constantly exposed to the elements.

2. Enhanced Durability and Heat Reflectivity: The aluminum within the galvalume coating provides not only corrosion resistance but also excellent heat reflectivity. A roof built by pre-coated galvalume can reflect a lot of solar radiation, which is helpful to reduce the indoor temperatures and the cost of cooling energy. The additional precoat further improves the durability by protecting the metal substrate from ultraviolet degradation and providing excellent resistance to chipping, scratching and fading.

3. Aesthetic Versatility and Economic Efficiency: The coil coating process allows for a vast spectrum of colors, finishes, and textures (e. Gloss, matte, metallic color), all of which are carried out in a controlled factory environment. This eliminates the need for expensive, changeable and time-consuming on-site painting, ensuring a consistent and high-quality finishes and faster project completion. Products like the Runfei 150G Prepainted Galvalume Steel Coil can be customized to specific RAL color codes, offering architects and designers great creative freedom.

4. Easy to manufacture: Although the strength is high, the pre-coated galvalume has strong formability. Because of the ductility of steel-based and Galvalume coatings, it can be easily rolled, bent or deep drawn without damaging the paint film. This makes it perfect for creating complex profiles for roofing, wall panels, and other architectural elements.

Main application scenarios

The combination of strength, corrosion resistance and aesthetics makes 150G pre-coated galvalume plate incredibly versatile. Its major applications include:

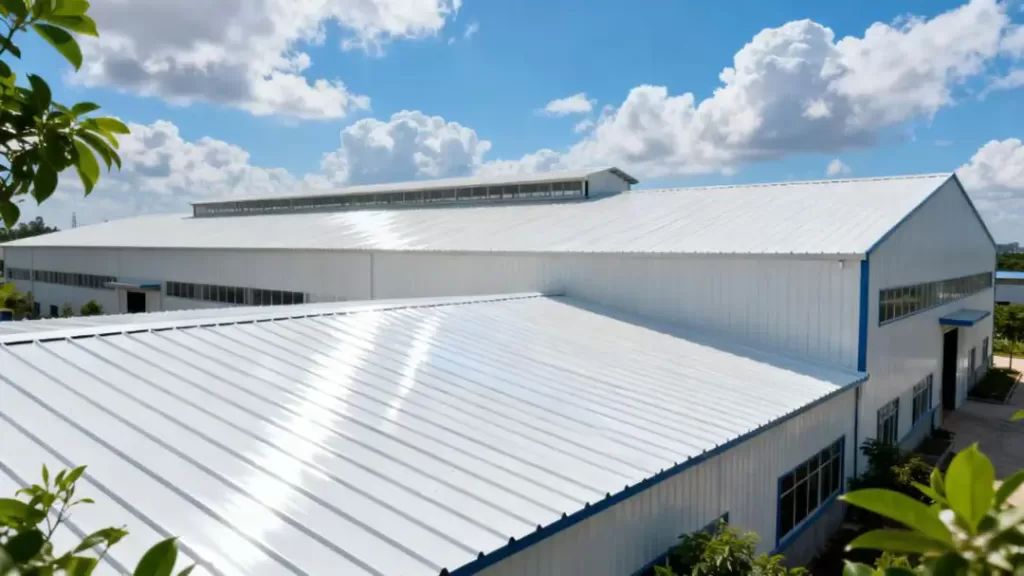

• Building roofs and siding: Used for industrial buildings, warehouses and agricultural facilities.
• Corrugated Roofing and Wall Panels: Its formability is perfect for creating strong, weatherproof profiles.
• Interior of the building: Used for partition, ceilings and decorative elements.
• Electrical enclosure: Used for articles requiring durability and beauty.
• General Manufacturing: Used in various products requiring a strong, pre-finished metal component.

Frequently Asked Questions

Question 1: How does galvalume compare with galvanized steel?

A: The aluminum added by galvalume has excellent corrosion resistance, especially in industrial and marine environments, and better thermal reflectivity. The galvalume coating protects differently, often leading to a longer service life.

Question 2: What is the meaning of the name “150g”?

A: The “150 g” refers to the total coating weight of the galvalume layer being 150 grams per square meter. The larger the number, the thicker the coating is, and the stronger the protection. 150G is a solid industry standard weight, suitable for most building applications.

Summary

The 150G precoated galvalume steel coil is a high performance engineering solution, which successfully combines the corrosion resistance of galvalume substrate with the aesthetics and protection of an advanced paint system. For projects demanding longevity, minimal maintenance, and visual appeal, this material stands out as a smart, reliable, and cost-effective choice. By selecting a quality-assured product like the Runfei 150G Prepainted Galvalume Steel, you invest in the long-term success and durability of your project.
